🚀 30 Days of System Design – Day 4: Database Replication
By Alvion Technologies
In real-world systems, most applications are read heavy. Users browse content, view dashboards, load feeds, and fetch records far more often than they modify data.
If every read and write hits a single database instance, performance degrades quickly. CPU spikes. Disk I/O increases. Latency rises. And eventually, the system becomes unstable.
This is where Database Replication becomes foundational in system design.

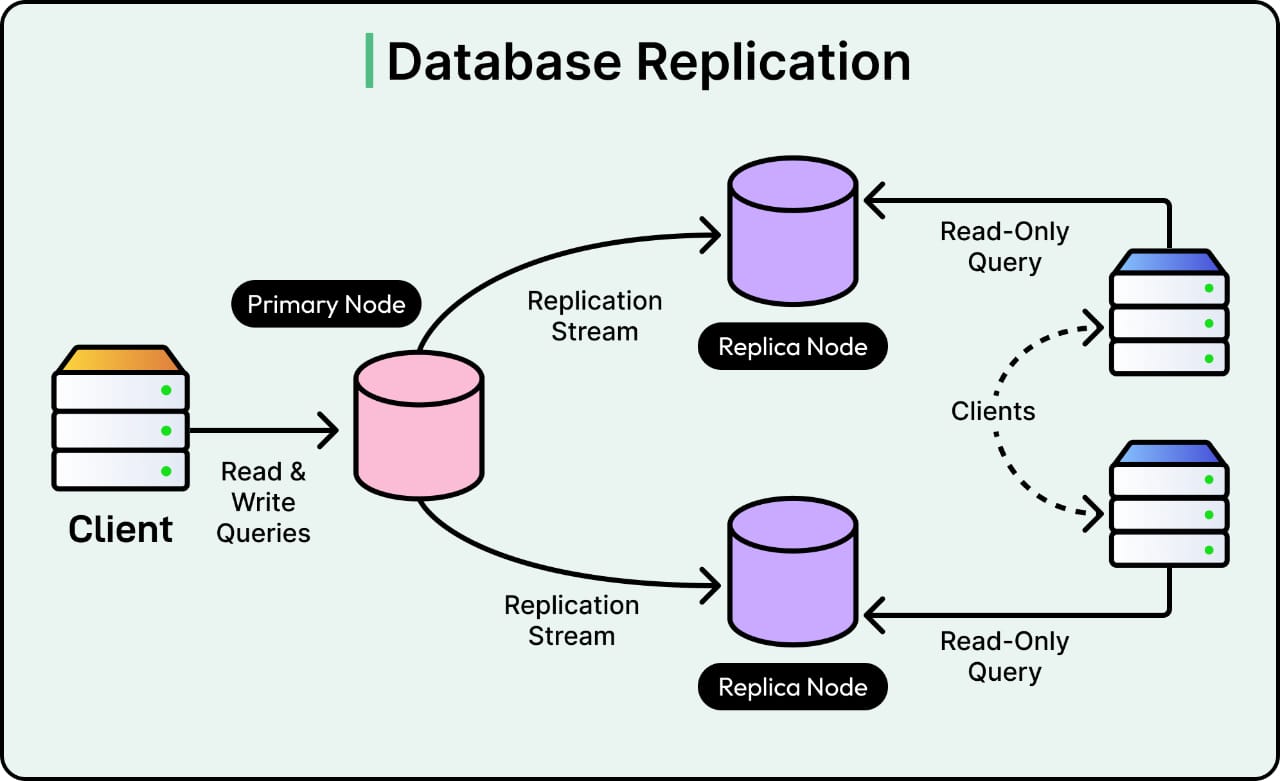

🗃️ The Core Replication Pattern
Replication creates multiple copies of the same database across different servers (nodes). Each node has a defined responsibility.
Master Database handles all write operations — insert, update, delete.
Replica (Slave) Databases serve read traffic and continuously receive updates from the master.
- Application writes → Master
- Application reads → Replicas
- Data flows from Master → Replicas continuously
This separation dramatically improves scalability for read-heavy systems.
⚡ Why Replication Matters
Replication is not just a performance trick — it is a reliability strategy.
Improved Performance — Read traffic scales horizontally by adding more replicas.
High Availability — If one replica fails, traffic shifts to healthy replicas.
Fault Tolerance — Multiple copies reduce risk of total data loss.
Operational Flexibility — Backups and analytics can run on replicas without impacting production writes.
This architecture keeps the system responsive even during heavy load.
🛠️ Failure Handling (At a Glance)
No distributed system is complete without a failure strategy.
If a replica goes down, read traffic automatically shifts to other healthy replicas — or temporarily to the master if needed.
If the master fails, a replica can be promoted to become the new master. However, this requires careful coordination to prevent data inconsistency.
Modern systems use automated orchestration tools to detect failure and trigger controlled failover with minimal downtime.
📊 Important Architectural Insight
Replication improves read scalability, not write throughput.
Because writes still go to a single master node, replication does not solve write bottlenecks. For write scaling, systems combine replication with sharding.
Replication may also introduce replication lag — where replicas are slightly behind the master. System designers must evaluate whether eventual consistency is acceptable.
🔗 Replication in Modern Architectures
Replication rarely works alone. It is typically combined with:
- Load Balancers (to distribute read traffic)
- Caching Layers (to reduce database hits)
- Sharding (to scale write throughput)
- Monitoring systems (to detect replication lag)
Modern systems don't rely on a single database node — they distribute responsibility across tiers for resilience and safe growth.
